TriLight™ Fluorescent Sign Lamps

Voltarc’s TriLight T8 and T12 series of fluorescent sign lamps offers exceptional color rendering for maximum lumen output and maintenance performance for all lamp applications. The T8 is rated for 18,000 hours while the T12 is rated for 12,000 hours. TriLight Tri-band series fluorescent lamps are made to the same lengths as standard T12 high-output lamps, so they are easy to retrofit into existing high-output sign lighting systems.

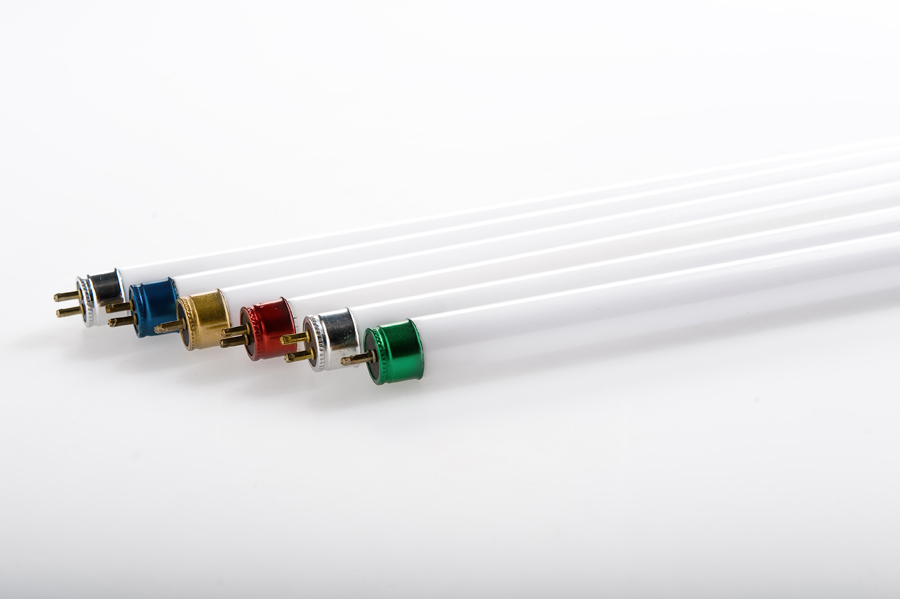

T5 lamps colored basesThe TriLight Tri-band series of fluorescent sign lamps are compatible with most currently available electronic warm start sign ballasts to provide maximum rated useful life. For low temperature applications starting as low as  -20°C, consider using the TriLightMax Thermal lamps.
When faced with the challenges of minimum cabinet depth and potential hot spots, use the TriLight Max Long Life Thermal Diffused T8 lamps. Many styles are available upon request.

Voltarc TriLightTM T8
High Output Fluorescent Lamps  – 18,000 Hours

Cool White Part # 1 Description
MS-84H-18 F18T8/CW/841/HO/RDC
MS-84H-24 F24T8/CW/841/HO/RDC
MS-84H-30 F30T8/CW/841/HO/RDC
MS-84H-36 F36T8/CW/841/HO/RDC
MS-84H-42 F42T8/CW/841/HO/RDC
MS-84H-48 F48T8/CW/841/HO/RDC
MS-84H-58 F58T8/CW/841/HO/RDC
MS-84H-60 F60T8/CW/841/HO/RDC
MS-84H-64 F64T8/CW/841/HO/RDC
MS-84H-72 F72T8/CW/841/HO/RDC
MS-84H-84 F84T8/CW/841/HO/RDC
MS-84H-96 F96T8/CW/841/HO/RDC
Day Light Part # 1 Description
MS-86H-18 F18T8/DL/865/HO/RDC
MS-86H-24 F24T8/DL/865/HO/RDC
MS-86H-30 F30T8/DL/865/HO/RDC
MS-86H-36 F36T8/DL/865/HO/RDC
MS-86H-42 F42T8/DL/865/HO/RDC
MS-86H-48 F48T8/DL/865/HO/RDC
MS-86H-58 F58T8/DL/865/HO/RDC
MS-86H-60 F60T8/DL/865/HO/RDC
MS-86H-64 F64T8/DL/865/HO/RDC
MS-86H-72 F72T8/DL/865/HO/RDC
MS-86H-84 F84T8/DL/865/HO/RDC
MS-86H-96 F96T8/DL/865/HO/RDC
Max 5000 Part # 1 Description
MS-85H-18 F18T8/5000/950/HO/RDC
MS-85H-24 F24T8/5000/950/HO/RDC
MS-85H-30 F30T8/5000/950/HO/RDC
MS-85H-36 F36T8/5000/950/HO/RDC
MS-85H-42 F42T8/5000/950/HO/RDC
MS-85H-48 F48T8/5000/950/HO/RDC
MS-85H-58 F58T8/5000/950/HO/RDC
MS-85H-60 F60T8/5000/950/HO/RDC
MS-85H-64 F64T8/5000/950/HO/RDC
MS-85H-72 F72T8/5000/950/HO/RDC
MS-85H-84 F84T8/5000/950/HO/RDC
MS-85H-96 F96T8/5000/950/HO/RDC

1Packaged 18 lamps/carton.
All lamps are made to standard T12 HO lengths with Recessed Double Contacts (RDC) end caps.
Lamp life is based on 12 hour switching cycle using electronic warm start ballast.
Lamp wattage is based on nominal 315 mA +/- 5% operating current. Lamp operating current range 265 – 465 mAMaximum Overall Length: The length of the lamp from the end of one RDC boss to the end of the opposite RDC boss.
Base Face to Base Face is Maximum Overall Length minus 3/4″.

Lamp3
Designation
Maxium
Overall Length
Cool White
k / CRI
Day Light
k / CRI
Max 5000
k / CRI
Rated4
Lamp Watts
Avg. Rated
Life (hrs.)
Box
Size
F18T8/HO/RDC 15.91” 4100 / 85 6500 / 85 5000 / 90 15 18,000 18
F24T8/HO/RDC 21.91” 4100 / 85 6500 / 85 5000 / 90 17 18,000 18
F30T8/HO/RDC 27.91” 4100 / 85 6500 / 85 5000 / 90 21 18,000 18
F36T8/HO/RDC 33.91” 4100 / 85 6500 / 85 5000 / 90 25 18,000 18
F42T8/HO/RDC 39.91” 4100 / 85 6500 / 85 5000 / 90 30 18,000 18
F48T8/HO/RDC 45.91” 4100 / 85 6500 / 85 5000 / 90 35 18,000 18
F58T8/HO/RDC 59.00” 4100 / 85 6500 / 85 5000 / 90 58 18,000 18
F60T8/HO/RDC 57.91” 4100 / 85 6500 / 85 5000 / 90 44 18,000 18
F64T8/HO/RDC 61.91” 4100 / 85 6500 / 85 5000 / 90 48 18,000 18
F72T8/HO/RDC 69.91” 4100 / 85 6500 / 85 5000 / 90 53 18,000 18
F84T8/HO/RDC 81.91” 4100 / 85 6500 / 85 5000 / 90 62 18,000 18
F96T8/HO/RDC 93.91” 4100 / 85 6500 / 85 5000 / 90 73 18,000 18


Back to Top

Voltarc TriLight TM T12
High Output
Long Life Lamps

Cool White Part #1 Description
MS-14H-18 F18T12/CW/HO/RDC
MS-14H-24 F24T12/CW/HO/RDC
MS-14H-30 F30T12/CW/HO/RDC
MS-14H-36 F36T12/CW/HO/RDC
MS-14H-42 F42T12/CW/HO/RDC
MS-14H-48 F48T12/CW/HO/RDC
MS-14H-60 F60T12/CW/HO/RDC
MS-14H-64 F64T12/CW/HO/RDC
MS-14H-72 F72T12/CW/HO/RDC
MS-14H-84 F84T12/CW/HO/RDC
MS-14H-96 F96T12/CW/HO/RDC*
Day Light Part # 1 Description
MS-16H-18 F18T12/DL/HO/RDC
MS-16H-24 F24T12/DL/HO/RDC
MS-16H-30 F30T12/DL/HO/RDC
MS-16H-36 F36T12/DL/HO/RDC
MS-16H-42 F42T12/DL/HO/RDC
MS-16H-48 F48T12/DL/HO/RDC
MS-16H-60 F60T12/DL/HO/RDC
MS-16H-64 F64T12/DL/HO/RDC
MS-16H-72 F72T12/DL/HO/RDC
MS-16H-84 F84T12/DL/HO/RDC
MS-16H-96 F96T12/DL/HO/RDC*
Max 5000 Part # 1 Description
MS-15H-18 F18T12/5000/HO/RDC
MS-15H-24 F24T12/5000/HO/RDC
MS-15H-30 F30T12/5000/HO/RDC
MS-15H-36 F36T12/5000/HO/RDC
MS-15H-42 F42T12/5000/HO/RDC
MS-15H-48 F48T12/5000/HO/RDC
MS-15H-60 F60T12/5000/HO/RDC
MS-15H-64 F64T12/5000/HO/RDC
MS-15H-72 F72T12/5000/HO/RDC
MS-15H-84 F84T12/5000/HO/RDC
MS-15H-96 F96T12/5000/HO/RDC*

1All lamps are made to standard T12 HO lengths with Recessed Double Contacts (RDC) end caps.
Lamp life is based on 12 hour switching cycle using electronic warm start ballast.
Lamp wattage is based on nominal 315 mA +/- 5% operating current. Lamp operating current range 265 – 465 mA.
Maximum Overall Length:  The length of the lamp from the end of one RDC boss to the end of the opposite RDC boss.
Base Face to Base Face is Maximum Overall Length minus 3/4″.
*Cold temperature rated

Lamp3
Designation
Maxium
Overall Length
Cool White
k / CRI
Day Light
k / CRI
Max 5000
k / CRI
Rated4
Lamp Watts
Avg. Rated
Life (hrs.)
Shipping
Weight
Box
Size
F18T12/HO/RDC 15.91” 4100 / 85 6500 / 85 5000 / 90 25 9,000 5 15
F24T12/HO/RDC 21.91” 4100 / 85 6500 / 85 5000 / 90 37 9,000 6 15
F30T12/HO/RDC 27.91” 4100 / 85 6500 / 85 5000 / 90 42 9,000 8 15
F36T12/HO/RDC 33.91” 4100 / 85 6500 / 85 5000 / 90 50 9,000 11 15
F42T12/HO/RDC 39.91” 4100 / 85 6500 / 85 5000 / 90 55 9,000 10 15
F48T12/HO/RDC 45.91” 4100 / 85 6500 / 85 5000 / 90 63 12,000 9 15
F60T12/HO/RDC 57.91” 4100 / 85 6500 / 85 5000 / 90 75 12,000 16 15
F64T12/HO/RDC 61.91” 4100 / 85 6500 / 85 5000 / 90 80 12,000 15 15
F72T12/HO/RDC 69.91” 4100 / 85 6500 / 85 5000 / 90 87 12,000 13 15
F84T12/HO/RDC 81.91” 4100 / 85 6500 / 85 5000 / 90 100 12,000 20 15
F96T12/HO/RDC 93.91” 4100 / 85 6500 / 85 5000 / 90 113 12,000 18 15
