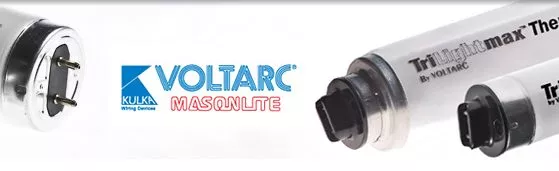

TRILIGHT MAX™ FLUORESCENT SIGN LAMPS

TriLight Max Fluorescent Sign Lamps

TriLight MaxVoltarc’s TriLight MaxTM T8 and T12 series of fluorescent lamps use our Long LifeTM Cup-Cathode Technology.

The T8 TriLightMax fluorescent lamps have 60,000 hours of rated useful life – a life expectancy six times greater than standard T12 HO lamps and up to 40% more efficient.  The T12 TriLightMax lamps have 50,000 hours of rated useful life with 25 percent greater efficiency. Using TriLight Max T8HO and T12HO lamps means fewer lamp replacements and greatly reduced service calls.

The TriLight Max series of fluorescent lamps in conjunction with our Long LifeTM technology uses high-quality tri-band phosphors to yield exceptional color rendering for maximum lumen output and maintenance performance.

TriLight Max T12 efficiency vs. Standard Halo Phosphor graphDesigned with the sign-maker and serviceman in mind, the TriLight Max series of Long LifeTM fluorescent lamps are made to the same lengths as standard T12 high-output lamps, so they will easily fit into existing systems. TriLight Max lamps are available in T8 and T12 styles from the F18T12/HO to F96T12 HO TUFSTRAIGHT,  F108T12/HO to F120T12/HO XtraLong styles and in standard  TUFBEND U-Bend styles.

Energy efficient and environmentally friendly, the TriLight Max Long LifeTM fluorescent lamps with Cup-Cathode Technology are compatible with most magnetic and electronic sign ballasts. T8 lamps, when used with electronic ballasts, provide up to 40% greater efficiency.  T12 fluorescent lamps, when used with an electronic warm start ballast, provide up to 25% greater efficiency.

Also see Thermal Diffused Long LifeTM T8 fluorescent lamps – many styles are available upon request.



Direct Retrofitting

Unlike any other manufacturer, direct retrofitting with electronic ballasts rated for T8 and T12 fluorescent lamps directly replaces existing T12 HO lamps with up to 25% greater efficiency! Whether you are building, designing or retrofitting an existing sign, you’ll find it easy to incorporate TriLight Max into your signage program. Unlike other manufacturers that specialize in general lighting, Voltarc lamps are built with the sign-maker and professional serviceman in mind and are made to the same industry lengths as standard T12 high output lamps. TriLight Max T12 RDC’s are designed to operate on both magnetic and electronic sign ballasts so new construction and changeover is now a simple process.

You want to learn more? Just click here to download ourTriLight Max T8 LongLife Brochure and T12 LongLife Brochure.



Voltarc TriLight MaxTM T8

High Output Long Life Lamps  – 60,000 Hours

With Cup Cathode Technology

Cool WhitePart# Description
MM-84H-18 F18T8/CW/841/HO/RDC
MM-84H-24 F24T8/CW/841/HO/RDC
MM-84H-30 F30T8/CW/841/HO/RDC
MM-84H-36 F36T8/CW/841/HO/RDC
MM-84H-42 F42T8/CW/841/HO/RDC
MM-84H-48 F48T8/CW/841/HO/RDC
MM-84H-58 F58T8/CW/841/HO/RDC
MM-84H-60 F60T8/CW/841/HO/RDC
MM-84H-64 F64T8/CW/841/HO/RDC
MM-84H-72 F72T8/CW/841/HO/RDC
MM-84H-84 F84T8/CW/841/HO/RDC
MM-84H-96 F96T8/CW/841/HO/RDC
Day LightPart# Description
MM-86H-18 F18T8/DL/865/HO/RDC
MM-86H-24 F24T8/DL/865/HO/RDC
MM-86H-30 F30T8/DL/865/HO/RDC
MM-86H-36 F36T8/DL/865/HO/RDC
MM-86H-42 F42T8/DL/865/HO/RDC
MM-86H-48 F48T8/DL/865/HO/RDC
MM-86H-58 F58T8/DL/865/HO/RDC
MM-86H-60 F60T8/DL/865/HO/RDC
MM-86H-64 F64T8/DL/865/HO/RDC
MM-86H-72 F72T8/DL/865/HO/RDC
MM-86H-84 F84T8/DL/865/HO/RDC
MM-86H-96 F96T8/DL/865/HO/RDC
Max 5000Part# Description
MM-85H-18 F18T8/5000/950/HO/RDC
MM-85H-24 F24T8/5000/950/HO/RDC
MM-85H-30 F30T8/5000/950/HO/RDC
MM-85H-36 F36T8/5000/950/HO/RDC
MM-85H-42 F42T8/5000/950/HO/RDC
MM-85H-48 F48T8/5000/950/HO/RDC
MM-85H-58 F58T8/5000/950/HO/RDC
MM-85H-60 F60T8/5000/950/HO/RDC
MM-85H-64 F64T8/5000/950/HO/RDC
MM-85H-72 F72T8/5000/950/HO/RDC
MM-85H-84 F84T8/5000/950/HO/RDC
MM-85H-96 F96T8/5000/950/HO/RDC

Packaged 18 lamps/carton.

All lamps are made to standard T12 HO lengths with Recessed Double Contacts (RDC) end caps.

Lamp life is based on 12 hour switching cycle using electronic warm start ballast.

Lamp wattage is based on nominal 315 mA +/- 5% operating current. Lamp operating current range 265 – 465 mA.

Maximum Overall Length: The length of the lamp from the end of one RDC boss to the end of the opposite RDC boss.

Base Face to Base Face is Maximum Overall Length minus 3/4″.

Lamp3Designation MaxiumOverall Length Cool Whitek / CRI Day Lightk / CRI Max 5000k / CRI Rated4Lamp Watts Avg. RatedLife (hrs.) BoxSize
F18T8/HO/RDC 15.91” 4100 / 85 6500 / 85 5000 / 90 15 60,000 18
F24T8/HO/RDC 21.91” 4100 / 85 6500 / 85 5000 / 90 17 60,000 18
F30T8/HO/RDC 27.91” 4100 / 85 6500 / 85 5000 / 90 21 60,000 18
F36T8/HO/RDC 33.91” 4100 / 85 6500 / 85 5000 / 90 25 60,000 18
F42T8/HO/RDC 39.91” 4100 / 85 6500 / 85 5000 / 90 30 60,000 18
F48T8/HO/RDC 45.91” 4100 / 85 6500 / 85 5000 / 90 35 60,000 18
F58T8/HO/RDC 59.00” 4100 / 85 6500 / 85 5000 / 90 58 60,000 18
F60T8/HO/RDC 57.91” 4100 / 85 6500 / 85 5000 / 90 44 60,000 18
F64T8/HO/RDC 61.91” 4100 / 85 6500 / 85 5000 / 90 48 60,000 18
F72T8/HO/RDC 69.91” 4100 / 85 6500 / 85 5000 / 90 53 60,000 18
F84T8/HO/RDC 81.91” 4100 / 85 6500 / 85 5000 / 90 62 60,000 18
F96T8/HO/RDC 93.91” 4100 / 85 6500 / 85 5000 / 90 73 60,000 18

Back to top



Voltarc TriLight MaxTM T12

High Output Long Life Lamps  – up to 50,000 Hours

With Cup Cathode Technology

Cool WhitePart# Description
MM-14H-18 F18T12/CW/HO/RDC
MM-14H-24 F24T12/CW/HO/RDC
MM-14H-30 F30T12/CW/HO/RDC
MM-14H-36 F36T12/CW/HO/RDC
MM-14H-42 F42T12/CW/HO/RDC
MM-14H-48 F48T12/CW/HO/RDC
MM-14H-60 F60T12/CW/HO/RDC
MM-14H-64 F64T12/CW/HO/RDC
MM-14H-72 F72T12/CW/HO/RDC
MM-14H-84 F84T12/CW/HO/RDC
MM-14H-96 F96T12/CW/HO/RDC*
Day LightPart# Description
MM-16H-18 F18T12/DL/HO/RDC
MM-16H-24 F24T12/DL/HO/RDC
MM-16H-30 F30T12/DL/HO/RDC
MM-16H-36 F36T12/DL/HO/RDC
MM-16H-42 F42T12/DL/HO/RDC
MM-16H-48 F48T12/DL/HO/RDC
MM-16H-60 F60T12/DL/HO/RDC
MM-16H-64 F64T12/DL/HO/RDC
MM-16H-72 F72T12/DL/HO/RDC
MM-16H-84 F84T12/DL/HO/RDC
MM-16H-96 F96T12/DL/HO/RDC*
Max 5000Part# Description
MM-15H-18 F18T12/5000/HO/RDC
MM-15H-24 F24T12/5000/HO/RDC
MM-15H-30 F30T12/5000/HO/RDC
MM-15H-36 F36T12/5000/HO/RDC
MM-15H-42 F42T12/5000/HO/RDC
MM-15H-48 F48T12/5000/HO/RDC
MM-15H-60 F60T12/5000/HO/RDC
MM-15H-64 F64T12/5000/HO/RDC
MM-15H-72 F72T12/5000/HO/RDC
MM-15H-84 F84T12/5000/HO/RDC
MM-15H-96 F96T12/5000/HO/RDC*

All lamps are made to standard T12 HO lengths with Recessed Double Contacts (RDC) end caps.

Lamp life is based on 12 hour switching cycle using electronic warm start ballast.

Lamp wattage is based on nominal 315 mA +/- 5% operating current. Lamp operating current range 265 – 465 mA

Maximum Overall Length:  The length of the lamp from the end of one RDC boss to the end of the opposite RDC boss.

Base Face to Base Face is Maximum Overall Length minus 3/4″.

* Cold temperature rated

Lamp3Designation MaxiumOverall Length Cool Whitek / CRI Day Lightk / CRI Max 5000k / CRI Rated4Lamp Watts Avg. Rated Life (hrs.) ShippingWeight BoxSize
F18T12/HO/RDC 15.91” 4100 / 85 6500 / 85 5000 / 90 25 40,000 5 15
F24T12/HO/RDC 21.91” 4100 / 85 6500 / 85 5000 / 90 37 40,000 6 15
F30T12/HO/RDC 27.91” 4100 / 85 6500 / 85 5000 / 90 42 40,000 8 15
F36T12/HO/RDC 33.91” 4100 / 85 6500 / 85 5000 / 90 50 40,000 11 15
F42T12/HO/RDC 39.91” 4100 / 85 6500 / 85 5000 / 90 55 40,000 10 15
F48T12/HO/RDC 45.91” 4100 / 85 6500 / 85 5000 / 90 63 50,000 9 15
F60T12/HO/RDC 57.91” 4100 / 85 6500 / 85 5000 / 90 75 50,000 16 15
F64T12/HO/RDC 61.91” 4100 / 85 6500 / 85 5000 / 90 80 50,000 15 15
F72T12/HO/RDC 69.91” 4100 / 85 6500 / 85 5000 / 90 87 50,000 13 15
F84T12/HO/RDC 81.91” 4100 / 85 6500 / 85 5000 / 90 100 50,000 20 15
F96T12/HO/RDC* 93.91” 4100 / 85 6500 / 85 5000 / 90 113 50,000 18 15

* Cold temperature rated



Voltarc TriLight MaxTM XtraLong T12

High Output Long Life Lamps  – up to 50,000 Hours

With Cup Cathode Technology

Cool WhiteXtraLong

Part#DescriptionMM-14H-108F108T12/CW/HO/RDCMM-14H-117F117T12/CW/HO/RDCMM-14H-120F120T12/CW/HO/RDC

Day LightXtraLong

Part#DescriptionMM-16H-108F108T12/DL/HO/RDCMM-16H-117F117T12/DL/HO/RDCMM-16H-120F120T12/DL/HO/RDC

Lamp Style Max Overall Length Watts Average Rated Life (hrs)
F108T12/HO/RDC 105 3/16”  124 50,000
F117T12/HO/RDC 114 3/16” 132 50,000
F120T12/HO/RDC 117 3/16” 135 50,000

Maximum Overall Length: The length of the lamp from the end of one RDC boss to the end of the opposite RDC boss.

Base Face to Base Face is Maximum Overall Length minus 3/4″.
